Fix a Damaged Gas Meter Box with Gas Meter Box Cover



Is your gas meter box cracked, damaged, or missing a door? Instead of replacing the entire unit, a gas meter box cover—also known as a GRP Overbox—can restore its function and appearance quickly and cost-effectively. This guide explains how to repair a damaged gas meter box using an overbox cover. The installation example shown features a Mark 2 Recessed Gas Box, which is a common type, but the same method can apply to other models as well.



Step 1: Check Your Meter Box Dimensions

Before buying a gas meter box cover, measure your existing box’s height, width, and depth to ensure a proper fit.

Click here to browse suitable overboxes by size

Note: The image used in this guide shows a Mark 2 Recessed Gas Box.

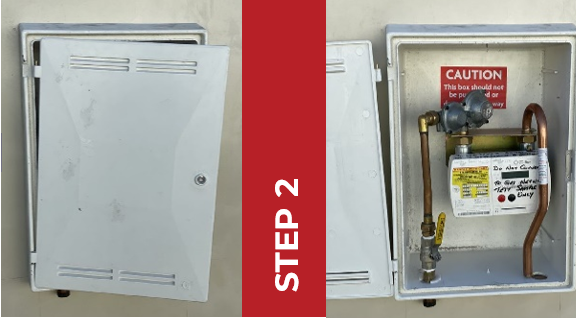

Step 2: Prepare the Surface

Remove the old or damaged door, clean around the architrave, and seal any cracks using fire-retardant silicone to prevent water ingress.

Step 3: Remove the Overbox Door

Detach the GRP Overbox door by using a narrow screwdriver to release the hinge clips.

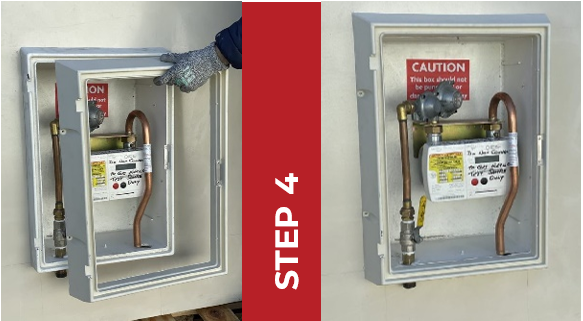

Step 4: Fit the Gas Meter Box Cover

Position the GRP Overbox over your existing meter box and ensure a snug fit.

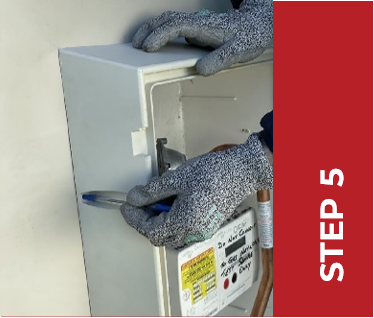

Step 5: Mark Fixing Points

Use the pre-drilled holes in the overbox to mark where screws will go.

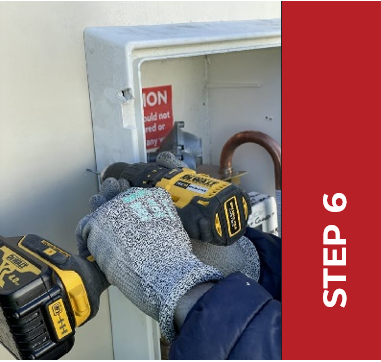

Step 6: Drill Fixing Points

Drill holes at the marked positions using an M6 drill bit to a depth of 30mm.

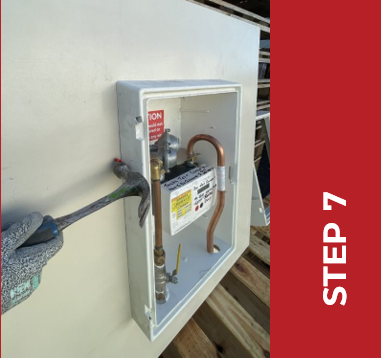

Step 7: nsert Wall Plugs and Secure with Screws

Insert the supplied wall plugs and fix the overbox securely with the provided screws.



Step 8: Reattatch the Door and Seal Gaps

Reinstall the door, then seal around the edges with fire-retardant silicone for added weather protection.



Why Use a Gas Meter Box Cover?

1. Affordable repair solution
2. Quick installation with basic tools
3. Protects meter from weather and damage
4. Gives a clean, professional finish

Whether you're repairing a single box or maintaining multiple properties, a gas meter box cover (GRP Overbox) can help you extend the life of your current meter enclosure without a full replacement. Explore options below:
