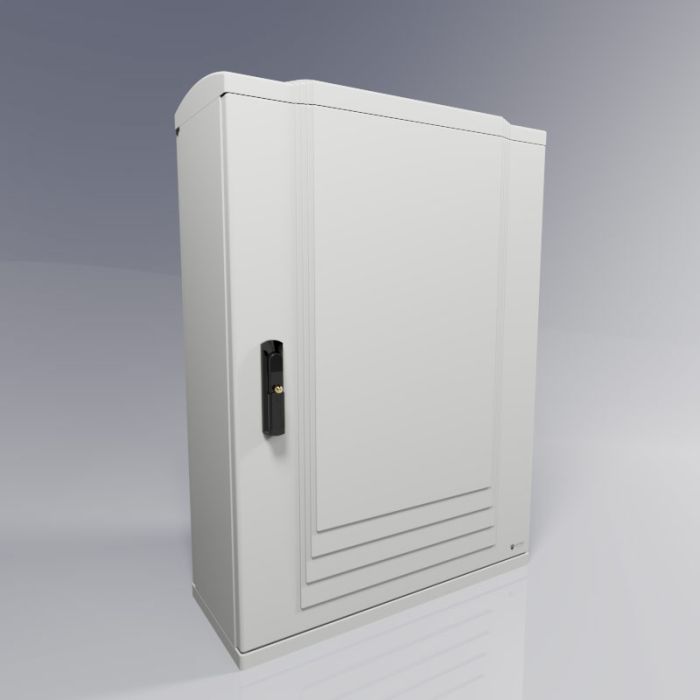

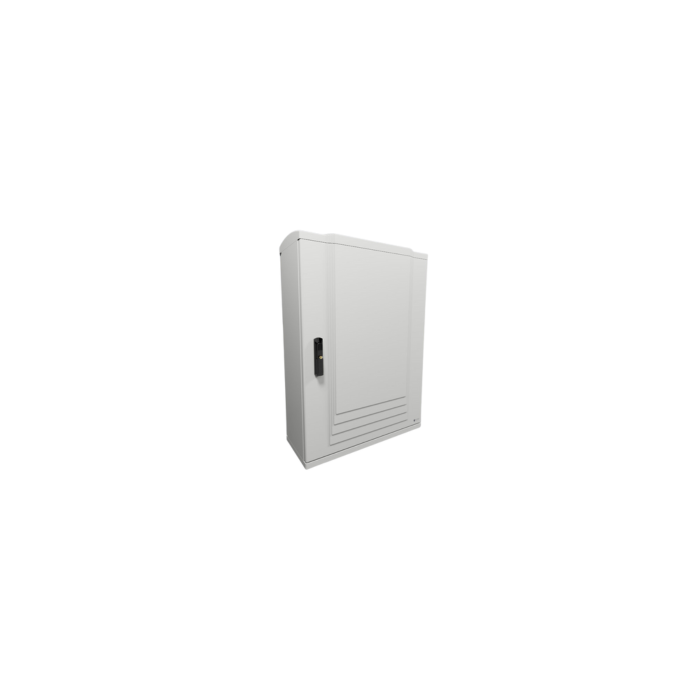

Vertical Electrical Kiosk(IP43)– Single Door for Heavy Installs
Main Description for Vertical Electrical Kiosk(IP43) with Single Door for Heavy Installs:
The Vertical Electrical Kiosk (IP43) with Single Door for Heavy Installs is a compact yet heavy-duty enclosure built to safeguard low-voltage electrical systems. With a tall, narrow footprint of 1000mm x 500mm x 300mm, this IP43-rated unit is ideal for installations with limited width but greater vertical component needs — such as residential switchgear, control gear assemblies, compressors, or metering equipment.
Reviews:
⭐⭐⭐⭐⭐
Quick and helpful service, product met requirements and was easy to install
Key Features for Vertical Electrical Kiosk(IP43) with Single Door for Heavy Installs:
- IEC 62208:2011 Certified: Fully compliant with international standards for low-voltage electrical enclosures
- Vertical Format for Space-Sensitive Installations: Optimized for areas with limited width or requiring vertical stacking of electrical components
- GRP Construction for Durability: Weatherproof, corrosion-resistant, non-hygroscopic, and halogen-free
- IP43 Environmental Protection: Resists ingress of solid objects over 1mm and water spray from all angles up to 60°
- IK10 Impact Rating: Withstands impacts up to 20kJ — suitable for outdoor public spaces and utility zones
- Triple-Locking Security System: Features corrosion-resistant vertical bars and a secure locking mechanism to deter tampering
- 180° Door Opening with Right-Side Hinge: Provides clear, full access for maintenance and installations
- Paintable, Easy-to-Clean Surface: GRP exterior can be customized to match site aesthetics or safety color coding
Technical Specifications for Vertical Electrical Kiosk(IP43) with Single Door for Heavy Installs:
- External Dimensions: 1000mm (H) x 500mm (W) x 300mm (D)
- Overall Height: 1066mm
- Overall Width: 504mm
- Opening Size: 971mm x 428mm
- Material: Glass Reinforced Polymer (GRP)
- Colour: Light Grey (RAL 7035)
- Temperature Range: -30°C to +70°C
- Impact Resistance: IK10 (20kJ)
- Ingress Protection: IP43
- UV Protection: Yes
- Fire Rating: Halogen-free and self-extinguishing to 960°C
- Optional Accessories: Polyester back mounting plate available for added installation flexibility
Benefits of Vertical Electrical Kiosk(IP43) with Single Door for Heavy Installs:
- Ideal for Narrow Spaces or Vertical Configurations: Perfect when floor space is limited, but vertical stacking or larger components require extra height
- Durable in All Weather Conditions: UV-stable, non-corrosive, and temperature-resistant GRP construction ensures longevity even in harsh environments
- Safe and Secure for Electrical Components: Complies with IEC 62208:2011 and includes a triple lock system for peace of mind in commercial and utility settings
- Easy to Work With: Quick to install with optional mounting accessories and simple access through wide-opening door
- Customizable Finish: Can be painted and cleaned with ease to meet branding, aesthetic, or site compliance needs
| Height (mm) | 1000 |
|---|---|
| Width (mm) | 500 |
| Depth (mm) | 300 |
Write Your Own Review
Yes , it is fully weather-resistant and IP43 rated for reliable performance outdoors.
It is constructed from Glass Reinforced Polymer (GRP) - strong, non-conductive, fire-retardant ad corrosion-resistant.
It allows for tall internal components or installations where horizontal space is limited.
The triple-lock design includes non-corrosive vertical bars for high-security protection of internal systems.
Yes, the GRP material is both paintable and easy to clean?
Yes, a polyester backplate can be added to suit specific installation requirements.
