Square Electrical Kiosk(IP43)–Double Door for Full Capacity
Main Description for Square Electrical Kiosk(IP43) with Double Door for Full Capacity:

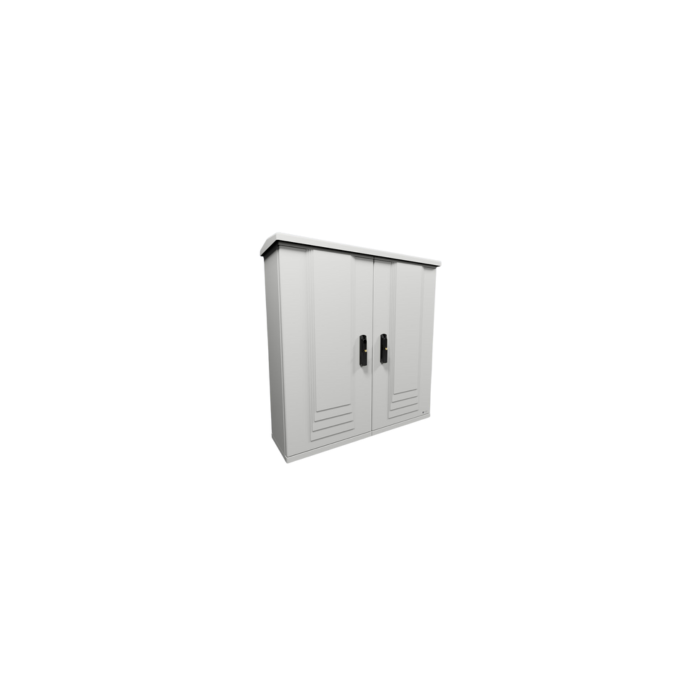

The Square Electrical Kiosk (IP43) with Double Door for Full Capacity is a durable, weather-resistant enclosure designed to house and protect low-voltage electrical systems in demanding environments. With generous internal dimensions of 1000mm x 1000mm x 300mm, this square-format double-door kiosk offers full-width access and is fully compliant with IEC 62208:2011 standards.
Reviews:
⭐⭐⭐⭐⭐
Easy to order fast delivery items as expected
Key Features for Square Electrical Kiosk(IP43) with Double Door for Full Capacity:
- IEC 62208:2011 Certified: Compliant with international standards for electrical enclosures in low-voltage systems
- Full-Width Double Door Access: 180º opening double doors offer maximum internal visibility and accessibility
- Robust GRP Build: Constructed from fiberglass reinforced polyester for corrosion resistance and mechanical strength
- IP43 Rated for Environmental Protection: Shields internal components from dust and directional water spray
- IK10 Impact Resistance: Withstands impacts up to 20kJ — suitable for high-traffic or outdoor public areas
- Triple Locking System: Secure and tamper-resistant design with non-corrosive locking bars that protect internal equipment
- Fire Retardant and Halogen-Free: Self-extinguishing up to 960°C and safe for use near sensitive environments or building infrastructure
- Flexible Installation Options: Mount on a pedestal, concrete pad, tarmac, or attach to machinery depending on site needs
Technical Specifications for Square Electrical Kiosk(IP43) with Double Door for Full Capacity:
- External Dimensions: 1000mm (H) x 1000mm (W) x 300mm (D)
- Weight: 43kg
- Material: Fiberglass Reinforced Polyester
- Colour: Light Grey (RAL 7035)
- Temperature Range: -30°C to +70°C
- Compression Resistance: 100kg
- Ingress Protection: IP43
- Impact Resistance: IK10
- UV Resistant: Yes
- Fire Safety: Halogen-free, self-extinguishing to 960°C
- Installation Methods: Pedestal, concrete, tarmac, or machine-mounting
- Electrical Ratings:
- Up to 1500V DC
- Up to 1000V AC
Benefits of Square Electrical Kiosk(IP43) with Double Door for Full Capacity:
- Designed for Full-Capacity Installations: Its square format and wide double doors accommodate more components and complex layouts without crowding
- Built to Endure Tough Environments: UV, impact, and corrosion-resistant construction make it ideal for both indoor utility rooms and outdoor public sites
- Regulatory Compliance You Can Trust: Compliant with IEC 62208:2011 for low-voltage safety and protection
- Easy to Install and Maintain: Comes with assembly instructions and a surface that’s both paintable and easy to clean
- Secure and Accessible: A triple-lock system ensures peace of mind, while the wide door opening simplifies technician access
FAQ
Q. Can this kiosk be installed outdoors?
A. Yes, it’s IP43 and UV rated, offering reliable protection in all-weather conditions.
Q. What’s the kiosk made of?
A. It is made from fiberglass reinforced polyester, known for being durable, non-corrosive, and electrically non-conductive.
Q. What’s the internal capacity like?
A. Its 1000mm x 1000mm square footprint offers ample room for more complex or higher-volume installations.
Q. Is it fire safe?
A. Yes, it is halogen-free and self-extinguishing up to 960°C.
Q. What mounting options are available?
A. It can be pedestal-mounted, placed on concrete or tarmac, or affixed directly to industrial machinery.
Product Download: IP43 Double Door Kiosk (1000x1000x300mm)
| Height (mm) | 1000 |
|---|---|
| Width (mm) | 1000 |
| Depth (mm) | 300 |
