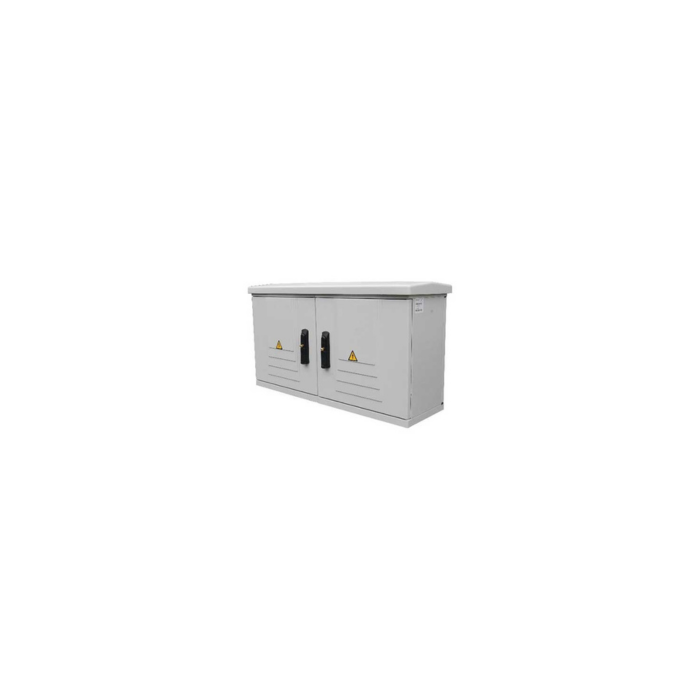

Wide Electrical Kiosk(IP43) – Double Door for Compact Install
Main Description for Wide Electrical Kiosk(IP43) with Double Door for Compact Install:
The Wide Electrical Kiosk (IP43) with Double Door for Compact Install offers durable and weather-resistant protection for low-voltage electrical systems in space-conscious environments. Measuring 500mm (H) x 1000mm (W) x 300mm (D), this fiberglass-reinforced polyester enclosure features a double-door design for full-width access and complies with IEC 62208:2011 standards for electrical safety and enclosure reliability.
Reviews:
⭐⭐⭐⭐⭐
Ordered product, acknowledgement of order, delivered all as described on the web site. Product yet to be installed.
Key Features for Wide Electrical Kiosk(IP43) with Double Door for Compact Install:
- IEC 62208:2011 Compliant: Fully certified for use with low-voltage switchgear and control gear assemblies
- Wide-Access Double Door Design: 180º door opening makes installation and maintenance of wider or multiple components easier
- High-Strength Fiberglass-Reinforced Polyester: Non-conductive, corrosion-resistant, and impact-proof — ideal for exposed or industrial sites
- IP43 Rated: Protection against water spray and solid particles greater than 1mm
- IK10 Impact Resistance: Handles impacts up to 20 kJ, suitable for utility environments or public-facing areas
- Triple Locking System: Secure vertical bars maintain IP rating while deterring unauthorized access
- Fire-Retardant and UV-Stable: Halogen-free and self-extinguishing up to 960°C, with built-in UV protection for longevity
- Flexible Mounting Options: Can be pedestal-mounted or fixed to concrete, tarmac, or machinery frames
technical Specifications Wide Electrical Kiosk(IP43) with Double Door for Compact Install:
- External Dimensions: 500mm (H) x 1000mm (W) x 300mm (D)
- Material: Fiberglass Reinforced Polyester
- Colour: Grey (RAL 7035)
- Weight: 30kg
- Temperature Range: -30°C to +70°C
- Compression Resistance: 100kg
- Ingress Protection: IP43
- Impact Resistance: IK10 – 20 kJ
- Fire Resistance: Halogen-free and self-extinguishing
- UV Resistant: Yes
- Mounting: Compatible with pedestals, concrete, tarmac, or direct machinery mounts
- Electrical Ratings:
- Up to 1500V DC
- Up to 1000V AC
Benefits of Wide Electrical Kiosk(IP43) with Double Door for Compact Install:
- Ideal for Compact Installations: Wide but low-profile format fits tight spaces while still accommodating multiple components
- Built to Last in Harsh Environments: Non-corrosive, UV-stable, and impact-rated for both indoor and outdoor durability
- Electrical Safety Assured: Electrically insulated up to 1500V DC, fire-retardant, and compliant with enclosure standards
- Simplified Maintenance and Access: Double-door opening offers full access for servicing without removing components
- Versatile Installation Options: Ready for ground or wall mounting across commercial, residential, or industrial settings
FAQ
Q. Is this kiosk safe for outdoor use?
A. Yes, it’s made from weatherproof fiberglass-reinforced polyester and features IP43 and UV protection.
Q. What equipment can it house?
A. It’s suitable for switchgear, meters, control gear, and other low-voltage components up to 1500V DC or 1000V AC.
Q. Is it compliant with international standards?
A. Yes — it meets IEC 62208:2011 standards for electrical enclosures.
Q. Can it be installed on uneven ground or outdoor surfaces?
A. Absolutely — it can be mounted on pedestals, concrete pads, tarmac, or directly to machinery.
Q. Is painting or custom branding possible?
A. Yes, the GRP material is paintable and easy to clean or customize.
| Height (mm) | 500 |
|---|---|
| Width (mm) | 1000 |
| Depth (mm) | 300 |
