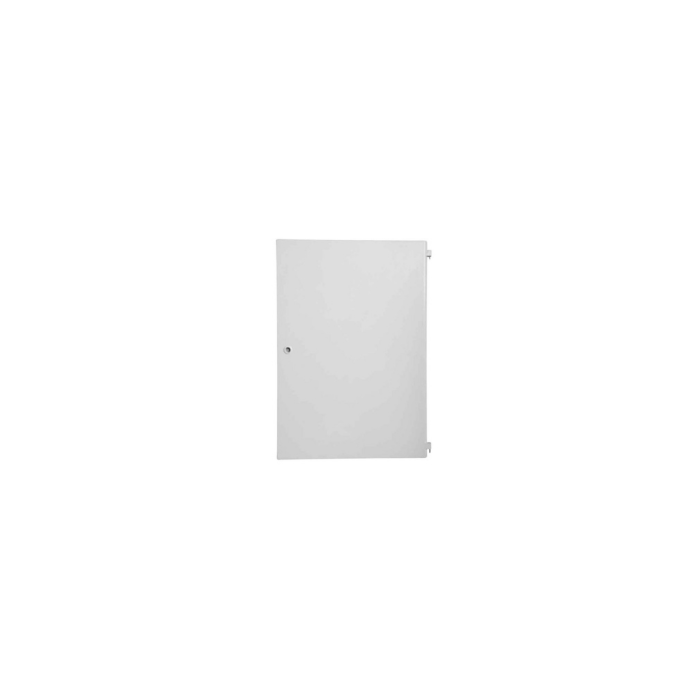

Electric Meter Box Door for Large 3-Phase Permali Meter Box

Key Features for Electric Meter Box Door for Large 3-Phase Permali Meter Box:

BS 8566:2012 Compliant: Built to current British Standards for recessed electric meter boxes
Fire Retardant Material: Rated to BS 476, Part 7, 1997, Class 2, ensuring added safety in commercial and domestic settings
Durable GRP Build: Made from Glass Reinforced Polymer for long-term weather resistance and structural strength
Weatherproof & Corrosion-Resistant: Designed for the UK climate — will not rust, warp, or degrade
Right-Hand Hinge Design: Matches original box orientation for straightforward use
Quick Installation: Fitted using a solid stainless steel pin (bottom) and spring-loaded brass pin (top) — no specialist tools needed
Paintable Finish: Easily painted to blend with building exteriors

Technical Specifications for Electric Meter Box Door for Large 3-Phase Permali Meter Box:

External Dimensions: 735mm (H) x 507mm (W)
Material: Glass Reinforced Polymer (GRP)
Fire Rating: BS 476, Part 7, 1997, Class 2
Compliance: BS 8566:2012
Hinge Placement: Right-hand side
Installation Method:
1. Insert solid stainless steel pin into the bottom recess (right side).
2. Hold the door upright.
3. Insert spring-loaded brass pin into the top recess and allow it to lock into place.
4. Close and secure the door using the supplied lock.

Benefits of Electric Meter Box Door for Large 3-Phase Permali Meter Box:

Restores Function & Security: Ideal for replacing broken or weather-worn meter box doors quickly and securely
Weather-Resistant Replacement: GRP construction protects against rain, frost, and UV damage without corroding
Fire Compliant for Added Safety: Meets UK fire safety requirements for meter enclosures
Fast, Tool-Free Fitting: Simple pin system allows fast installation without specialist support
Customizable Appearance: Can be painted to suit building facades or branding needs

FAQ

Q. Is this meter box door compatible with all meter boxes?

A. No. This door is specifically designed for large 3-phase recessed meter boxes and Permali meter box housings, and is compliant with BS 8566:2012. Always confirm your box’s measurements (735mm x 507mm).

Q. What is the door made from?

A. It’s constructed from Glass Reinforced Polymer (GRP) — a durable, weather-resistant, and fire-retardant material.

Q. How is the door installed?

A. Installation is simple: Insert the bottom steel pin, align the door upright, then insert the top spring-loaded brass pin. The door will lock into place and can be closed and secured as normal.

Q. Is it fire safe?

A. Yes — it complies with BS 476, Part 7, Class 2 fire rating requirements for external meter enclosures.

Q. Can it be painted?

A. Absolutely. The GRP surface is paintable using standard exterior paints.

Q. Where can I order the replacement door?

A. You can purchase it directly from our website at Meter Boxes Direct or through one of our approved distributors.

Product Download: Large Permali Electric Meter Box Door Specification Sheet
