Electric Kiosk IP43 Rated (750x750x300mm) EB0029

IP43 Rated, weather-resistant Electrical Kiosk - 750x750x300mm (Flatpacked). Suitable for both inside and outside use. Supplied with hinges, lock and key. This Kiosk comes as self-assembly only.

It is suitable for multiple electrical housing applications including meters and air blowers.

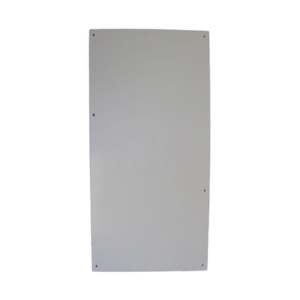

Please note - A backboard is not supplied with this product. Backboards are available to buy as an optional extra. To purchase a backplate for this product please visit  Backplate for the EB0029.

Dimensions

• Height; 750mm
• Width: 750mm
• Depth: 300mm

Colour

• Light grey colour (Ral 7035)

Specifications

• Constructed from GRP – Glass Reinforced Plastic
• Suitable for all meters, compressors, etc.
• Will not corrode, weather-resistant
• Easily cleaned and can be painted
• Complete with hinges, lock and key
• This Kiosk comes as self-assembly only
• Ral 7035
• -30ºC to + 60ºC
• Halogen Free
• Hinges on right

Fitting instructions

• Full assembly instructions are supplied with this product and are also available below.

Step 1: Seal Assembly Instructions

Step 2: Kiosk Assembly Instructions

1. Assemble the 2 sides first. The pre-drilled holes with inserts are to be kept at the back of the base plate.
2. Insert the screws to attach the sides to the base, do not fully tighten the screws at this stage. Turn the kiosk around, the back of the kiosk facing you.
3. Assemble the backplate to the sides, inserting screws, again do not fully tighten at this stage at 4 corners.
4. Insert longer dowels at the top of the backplate.
5. Insert the top plate.
6. Insert the 4 screws to attach the top plate to the sides.
7. Fully tighten all of the screws throughout the kiosk.
8. Insert the backplate and tighten screws.
9. To attach the door, push down the bottom hinges, it will be placed in the groove located at the bottom corner and top corner. Hinges to be turned 90⁰ to lock in place.
10. Push in the brass fitting and slide the lock cover-up, turning clockwise with the key and pull out the handle.
11. Close the door as normal pulling down the handle to lock it in place.
