Large Electrical Kiosk (IP43)– for high-load,multi-use setup
Main Description for Large Electrical Kiosk (IP43) for High-Load, Multi-Use Setup

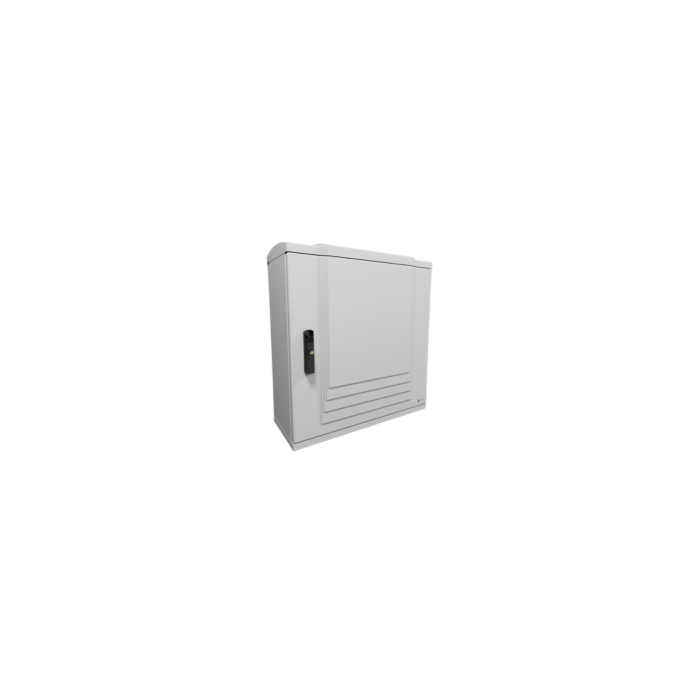

The Large Electrical Kiosk (IP43) for high-load, multi-use setup by Tricel is a weather-resistant, impact-rated enclosure designed to protect electrical equipment in demanding environments. Measuring 1000mm x 750mm x 300mm, this IP43-rated single-door kiosk complies with IEC 62208:2011 standards, making it suitable for both residential and commercial applications where low-voltage switchgear, meters, compressors, or control gear assemblies need secure and accessible housing.
Reviews:
⭐⭐⭐⭐⭐
Very good service. Was kept informed of delivery and box arrived when expected.
Key Features for Large Electrical Kiosk (IP43) for High-Load, Multi-Use Setup:
- Compliant with IEC 62208:2011: Meets strict industry standards for low-voltage switchgear and electrical housing
- Triple Lock Security: Reinforced with non-corrosive vertical bars and a 3-point locking mechanism to protect internal equipment
- GRP Construction: Durable, non-conductive, fire-retardant, and corrosion-resistant — perfect for outdoor environments
- High Impact Resistance (IK10): Withstands up to 20 kJ impact, suitable for high-traffic or exposed areas
- Full IP43 Protection: Shields electrical components from solid objects >1mm and water spray at up to 60º angles
- Easy Access Design: 180º door swing with right-side hinges for unrestricted maintenance and installation access
- Optional Mounting Plate: Can be fitted with a polyester backplate for more installation flexibility
Key Features for Large Electrical Kiosk (IP43) for High-Load, Multi-Use Setup:
- Dimensions: 1000mm (H) x 750mm (W) x 300mm (D)
- Overall Height: 1066mm
- Opening Size: 971mm x 678mm
- Material: Glass Reinforced Polymer (GRP)
- Colour: Light grey (RAL 7035)
- Temperature Range: -30°C to +70°C
- Impact Resistance: IK10 (20 kJ impact protection)
- Ingress Protection: IP43
- Fire Safety: Halogen-free and self-extinguishing
- UV Protection: Yes
- Insulation: Electrically non-conductive up to 1000V
- Mounting: Optional backplate available
- Maintenance: Easily cleaned and paintable exterior
Key Features for Large Electrical Kiosk (IP43) for High-Load, Multi-Use Setup:
- Heavy-Duty Protection: Designed for high-load, multi-use electrical setups, offering long-lasting protection for sensitive systems
- Versatile Use Cases: Suitable for housing electrical meters, switchgear, compressor units, and more in both residential and commercial contexts
- Security and Compliance Combined: Triple locking and IEC-certified construction ensure internal equipment is safe, secure, and regulation-ready
- Installer and Maintenance Friendly: The full 180º door access, optional mounting plate, and modular build make it easy to work with during initial setup or future servicing
- Built for Harsh Environments: Whether exposed to sunlight, moisture, or impact, this Large Electrical Kiosk (IP43) performs reliably across seasons and settings
FAQ
Q. What does the IP43 rating mean?
A. It ensures protection against water spray from any angle up to 60° and against solid objects larger than 1mm — suitable for sheltered outdoor use.
Q. Can this kiosk be used in commercial or industrial sites?
A. Yes, it's designed for both residential and commercial installations requiring high-load capacity and security.
Q. What material is the kiosk made of?
A. It is made from Glass Reinforced Polymer (GRP) — chosen for its impact resistance, electrical insulation, and weatherproofing.
Q. Is a mounting plate included?
A. A polyester back mounting plate is available as an optional add-on.
Q. How secure is the locking mechanism?
A. It includes a triple-lock system with corrosion-resistant vertical bars for added protection against tampering.
| Height (mm) | 1000 |
|---|---|
| Width (mm) | 750 |
| Depth (mm) | 300 |
