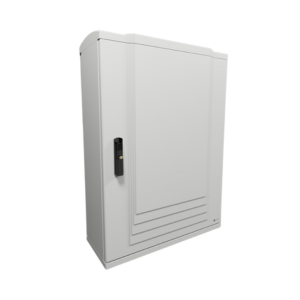

Large Electrical Kiosk (IP55)– Single Door for Heavy Installs
Main Description for Large Electrical Kiosk (IP55) with Single Door for Heavy Installs:
The Large Electrical Kiosk (IP55) with Single Door for Heavy Installs is a robust, weather-resistant GRP enclosure engineered to house low-voltage switchgear, control gear assemblies, meters, and compressors. Measuring 1000mm x 750mm x 300mm, this kiosk complies with IEC 62208:2011 standards, offering safe and durable protection for heavy-duty electrical setups in both indoor and outdoor environments.
Reviews:
⭐⭐⭐⭐⭐
efficient, which is all we want.
Key Features for Large Electrical Kiosk (IP55) with Single Door for Heavy Installs:
- IEC 62208:2011 Certified: Fully compliant for use with low-voltage switchgear and control gear assemblies
- IP55 Ingress Protection: Safeguards internal components from dust and water jets — suitable for exposed installations
- GRP Construction for Long-Term Durability: Made from Glass Reinforced Polymer, resistant to corrosion, UV exposure, and moisture
- IK10 Impact Resistance: Withstands up to 20kJ of force — built for demanding environments
- Triple Lock System: Secure vertical locking bars and non-corrosive materials enhance protection against tampering
- Double Insulation: Electrically non-conductive up to 1000V, supporting safety for installers and equipment
- Wide Access Door (180º): Hinges on the right with full swing capability — simplifies inspections and servicing
- Paintable & Easy to Clean: Aesthetic flexibility with a smooth GRP surface that can be cleaned and repainted as needed
Technical Specifications for Large Electrical Kiosk (IP55) with Single Door for Heavy Installs:

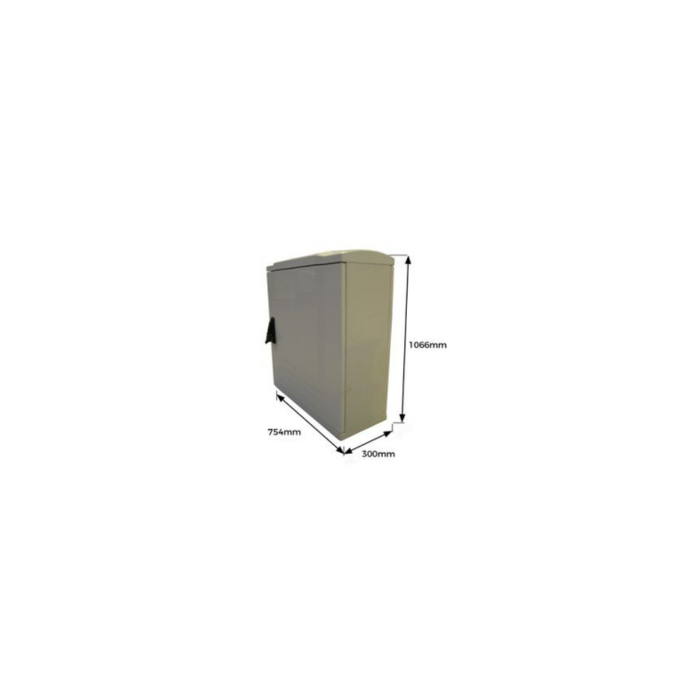

- External Dimensions: 1000mm (H) x 750mm (W) x 300mm (D)
- Material: Glass Reinforced Polymer (GRP)
- Colour: Light grey (RAL 7035)
- Temperature Range: -30ºC to +70ºC
- Ingress Protection: IP55 – dust-protected and resistant to low-pressure water jets
- Impact Rating: IK10 – protects against 20kJ impacts
- Fire Safety: Halogen-free and self-extinguishing
- UV Stability: Yes
- Water Resistance: Non-hygroscopic with minimal water absorption
- Mounting: Pre-drilled with installation hardware included
Benefits of Large Electrical Kiosk (IP55) with Single Door for Heavy Installs:
- Heavy-Duty Protection for Commercial Applications: Ideal for installations that involve large-scale or high-load electrical infrastructure
- Built to Perform in Harsh Environments: GRP body resists corrosion, sunlight, and physical damage over time
- Compliant and Safe: Meets IEC 62208:2011 and IP55 safety requirements for commercial-grade use
- Installation-Ready Design: Pre-drilled holes and included hardware make setup efficient for installers on tight schedules
- Accessible and Customizable: The wide-opening door and paintable finish support long-term use and visual adaptation to site requirements
FAQ
Q. Can this kiosk be installed outdoors?
A. Yes, it’s fully weather-resistant with IP55 protection and UV stability, ideal for external environments.
Q. What’s the construction material?
A. The kiosk is made from Glass Reinforced Polymer (GRP), offering excellent strength and resistance to corrosion and fire.
Q. What equipment can be housed inside?
A. This enclosure supports a variety of electrical equipment including low-voltage switchgear, meters, and compressors.
Q. Is it easy to install?
A. Yes — it comes pre-drilled and includes all necessary hardware for fast, secure mounting.
Q. Can it be painted to match other infrastructure?
A. Absolutely. The GRP surface can be cleaned and painted to meet aesthetic or branding requirements.
| Height (mm) | 1000 |
|---|---|
| Width (mm) | 750 |
| Depth (mm) | 300 |
