IP Rating Meaning
The IP Rating meaning
You might have noticed that a lot of Meter Boxes and Enclosures have an IP number, but do you know what does that mean?
Here is an explanation or reminder for those who have a distant memory of it.
What is IP rating?
IP is the acronym for Ingress Protection, those letters are followed by two-digit numbers determining is grading. This rating system is defined by an international standard EN 60529.
The IP rating applies to electrical item and states the level of protection and resistance to different types of unwanted intrusions: to users from mechanical or electrical parts, the degree of protection an enclosure offers and its overall resistance to moisture.
Why the IP rating system?
As mentioned above, this system is international and standardised in most regions, but you might have slight differences depending on where part of the world you’re buying from. In the UK, the IP rating is in accordance with the British Standard BS EN 60529:1992 and the European Standard IEC 60509:1989.
The IP rating method allows having a universal code so that buyers can easily identify the degree of protection and resistance they need and be confident to use those electrical products in specific applications or environments.
IP rating explanation
As explained, three key metrics are defined by the IP rating:
- Resistance to ingress, accidental or otherwise, by the user
- Resistance to ingress from foreign bodies (dust, dirt etc)
- Resistance to moisture ingress

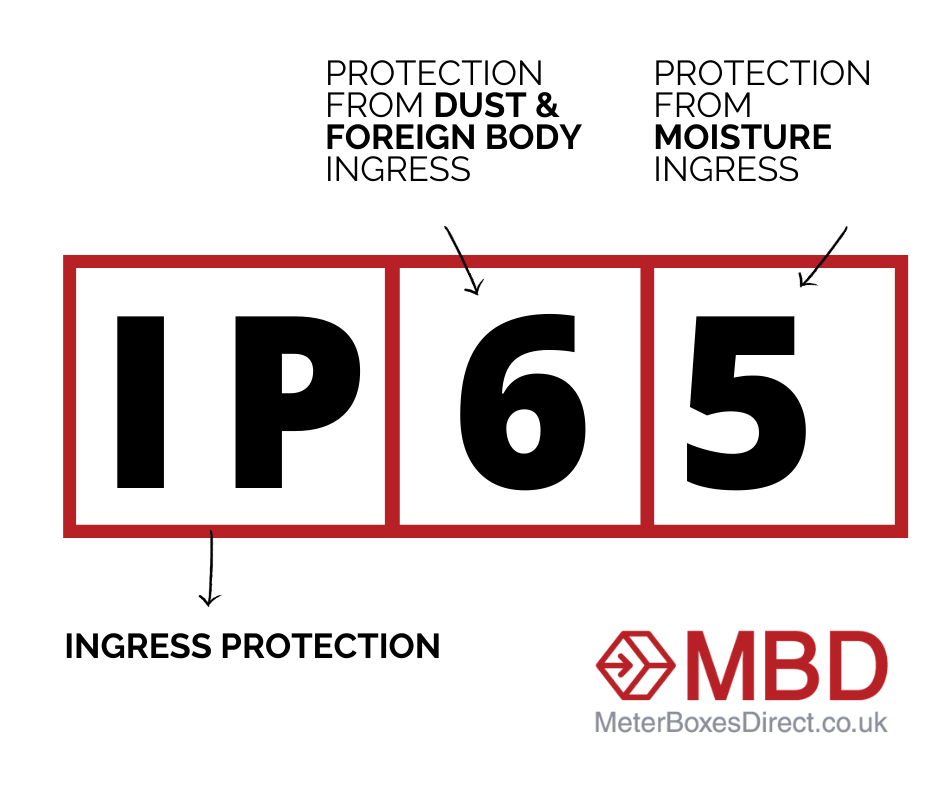

The first digit, a figure between 0 and 6, indicates the protection degree from dust and foreign body ingress, mainly solid objects.
The second digit, a number between 0 and 9, states the quality of resistance from moisture ingress. Various intensities, angles, depths and pressures of exposure or immersion are tested (drips, sprays, submersion, etc)
You might also find an additional letter sometimes like ‘M’ or ‘X’ at the end of the IP rating. This indicates the resistance to specific materials and hazards such as oil for example.

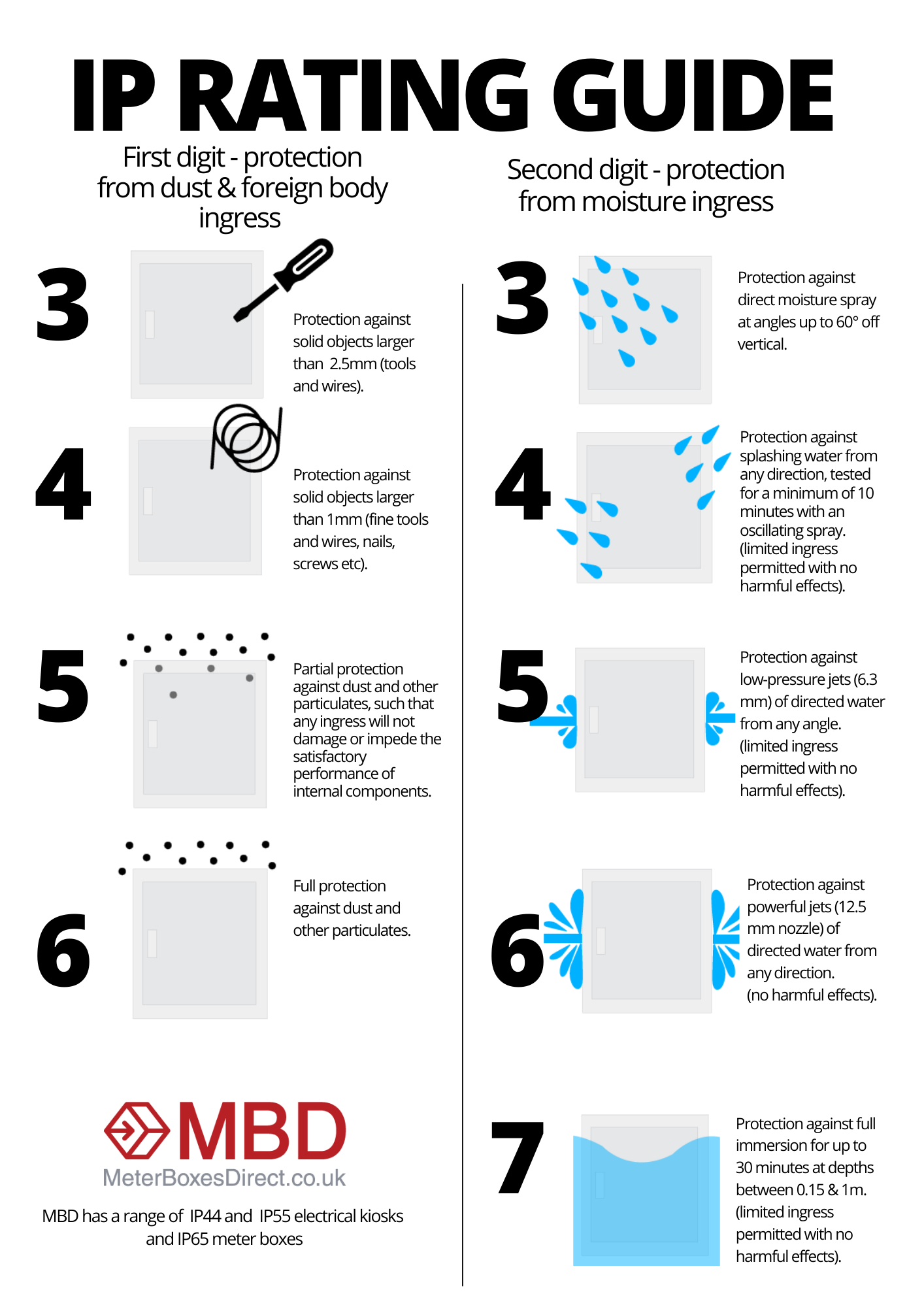

The infographic below helps you to identify the level of protection for each IP rated products. You can use this chart to define which meter box or enclosure do you need depending on the environment you are going to install them and the needed requirements.
At MeterBoxesDirect we test all our IP rated Meter Boxes and Enclosures. You can see an example of the IP44 testing for water ingress watching the video below:
Our IP rated range
You’ll find a wide range of IP rated products on the market, at MeterBoxesDirect, our most commons IP ratings are: IP55 and IP65.
The IP rated enclosures can be used in different sectors and industries and are assigned to a wide range of applications.
You will find our references below:

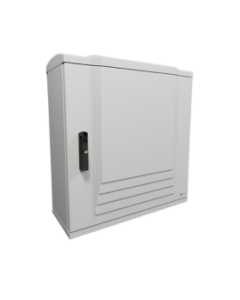

- EB0031 IP43 rated electrical Kiosk (1000x750x300mm)

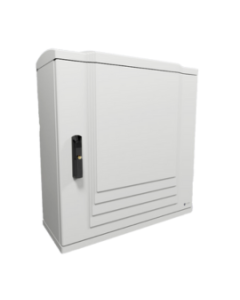

- EB0029 IP43 Rated Electric Kiosk (750x750x300mm)
- EB0027 IP43 Rated Electric Kiosk (500x500x300mm)
- EB0028 IP43 Rated Electric Kiosk (500x750x300mm)
- EB0026 IP43 Rated Electric Kiosk (750x500x300mm)
- 102217 IP55 Double Door Kiosk (1000x1000x300mm)
- EB0017 Weatherproof Electric Cabinet IP65 Rated (600 x 400 x 232mm)
- 102215 IP55 Double Door Kiosk (500x1000x300mm)
- 102216 IP55 Double Door Kiosk (750x1000x300mm)

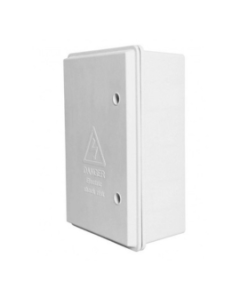

- EB0019 Weatherproof Electrical Cabinet IP65 Rated (360 x 252 x 140mm)
- EB0020 Pole Top Street Lighting Meter Box IP65 Rated (360 x 252 x 140mm)
- 102212 IP55 Kiosk Single Door (1000x750x300mm)
- 102211 IP55 Kiosk Single Door (1000x500x300mm)
- 102210 IP55 Kiosk Single Door (750x750x300mm)
- 102209 IP55 Kiosk Single Door (750x500x300mm)
- 102208 IP55 Kiosk Single Door (500x750x300mm)
- 102207 IP55 Kiosk Single Door (500x500x300mm)
